Protect Your Home: signs of subsidence in houses - a practical guide

You’ve spotted a new crack spreading diagonally from a window frame, or perhaps the living room door has suddenly started sticking for no reason. These are the classic calling cards of a serious structural issue: subsidence. It happens when the ground beneath your home's foundation starts to sink or shift, pulling parts of the building down with it.

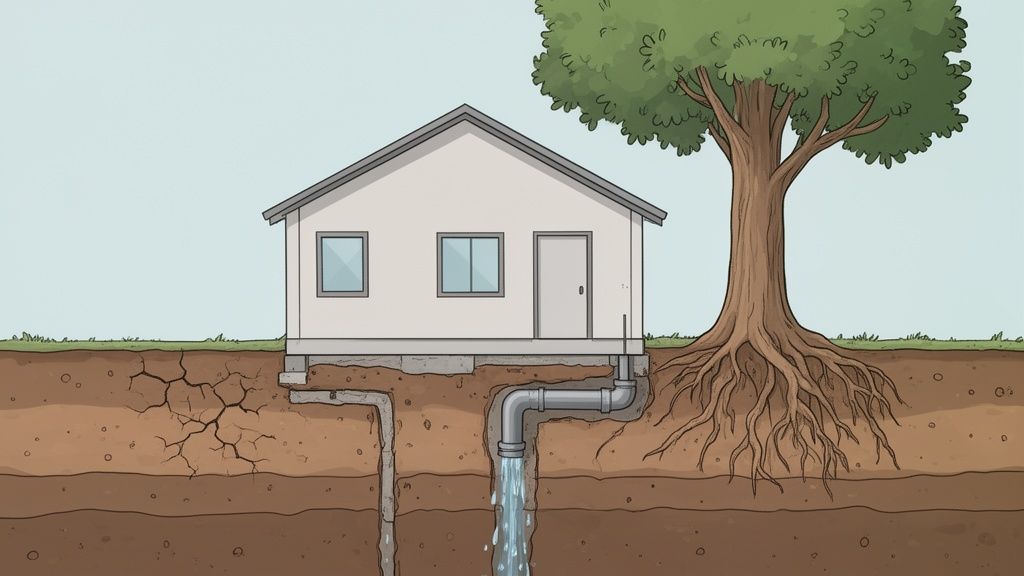

What Is Subsidence and Why Does It Happen?

Imagine your home's foundation as a pair of feet planted firmly on the ground. As long as that ground is solid and stable, everything is fine. But what happens if the ground turns soft, washes away, or shrinks? The feet lose their stable support, and the structure above starts to tilt and sink. That, in a nutshell, is subsidence.

It’s the downward movement of the ground under your foundations, which were never designed to handle that kind of instability. This is very different from settlement, which is the gentle, uniform compression of the ground that happens naturally in the first few years after a house is built. Subsidence is an unexpected problem caused by external forces changing the soil conditions long after the property was constructed.

The Main Culprits Behind Unstable Ground

For a quick overview, here are the most common triggers our in-house services see in properties across Bournemouth, Southampton, and Poole.

Common Causes of Subsidence at a Glance

Cause	How It Leads To Subsidence	Key Indicator
Clay Soil Shrinkage	Clay soil swells when wet and shrinks dramatically when it dries out during long, hot spells. This movement pulls foundations downwards.	Cracks appearing or worsening after a dry summer.
Leaking Drains	A slow, persistent leak can wash away finer soil particles, creating underground voids, or oversaturate the ground until it becomes unstable.	Damp patches, lush vegetation over drain runs, or a sudden increase in your water bill.
Nearby Trees	Large trees, especially thirsty species like oak and willow, can draw huge volumes of water from the soil, causing it to shrink.	Large, mature trees growing within a few metres of your property.

Understanding these root causes is the first step toward protecting your home. A leaking pipe, for instance, often goes hand-in-hand with damp issues. It's why knowing the true cost of damp proofing can be helpful, as these problems can be linked.

Subsidence is essentially a geological problem manifesting as a structural one. The stability of your entire home relies on the integrity of the ground it stands on, making soil condition the most critical factor.

Why Your Local Area Matters

Here in Hampshire and Dorset, the local geology plays a big role. Our coastal geography and significant deposits of clay soil make properties in the region more vulnerable to ground movement. In some areas, historical activities like mining have also left the ground less stable than it appears.

Being aware of these local risks helps you stay vigilant. Spotting the early signs of subsidence in houses means you can take action before a minor headache turns into a major structural crisis. Now, let’s look at exactly what those warning signs are.

Early Warning Signs of Subsidence to Watch For

Catching subsidence early is the secret to stopping a small issue from spiralling into a major structural headache. Unlike the immediate drama of a storm, the early signs of subsidence in houses creep up on you. For homeowners in places like Christchurch and Ringwood, where the local soil can be unpredictable, it pays to be vigilant for these initial red flags.

Think of these early warnings as your property’s way of telling you that something is shifting underfoot. Learning to spot them means you can act fast, potentially saving yourself thousands in future repair bills.

Cracks The Unmistakable Messengers

Without a doubt, the most common and glaringly obvious sign of subsidence is cracking. But hold on—not all cracks are created equal. While fine settlement cracks are a normal part of a house's life, the ones caused by subsidence have a very distinct personality.

You need to pay close attention to cracks that are:

• Diagonal: They tend to spread out from the corners of windows and doors, often at a sharp 45-degree angle.

• Wider at the top: This is a classic giveaway, showing that one part of the foundation is sinking lower than the other.

• Visible inside and out: If you can trace the same crack on your interior wall and the exterior brickwork, it’s a huge indicator of structural movement.

• Wider than 3mm: As a good rule of thumb, if you can slip the edge of a 10p coin into the gap, it’s time for a professional opinion.

These cracks often appear quite suddenly, particularly after a long dry spell or a period of heavy rain, both of which can wreak havoc on ground stability. While some minor hairline cracks are a simple DIY fix, it's vital to know when to call in the experts. For smaller, non-structural issues, our guide on how to repair cracked ceiling plaster might be useful.

Doors and Windows That Suddenly Stick

Have you noticed a door that used to swing open smoothly now scrapes the floor? Or a window that’s become a real battle to open and close? This is another classic early warning sign. As the ground beneath your home moves, it twists the building's frame, distorting the openings for your doors and windows.

This isn’t the same as timber swelling up in humid weather; subsidence-related sticking is more stubborn and tends to get worse over time. You might also spot new gaps appearing around the frames where there were none before.

A sticking door or window might seem like a minor annoyance, but it’s often one of the first clues that the building's structural geometry is changing due to unstable ground. Always investigate the root cause rather than just planing the door down.

Rippling Wallpaper and Other Subtle Clues

Sometimes, the evidence of subsidence is more subtle than a jagged crack running down your wall. Rippling or creased wallpaper, especially near the ceiling or tucked into corners, can be a sign that the wall behind it is on the move.

You should also keep an eye out for other indicators of ground instability. A persistently soggy or marshy lawn could be an early warning of poor drainage, which is a major contributor to subsidence. Knowing how to fix yard drainage isn't just about keeping your garden tidy; it’s about protecting your home's foundation by preventing the soil from becoming saturated and weak.

If you spot any of these signs, the first thing to do is not to panic. Start monitoring them. Take photos of any cracks with a ruler next to them for scale and make a note of the date. If they get wider or new signs pop up, it’s time to call in an expert. Our in-house services at Hallmoore Developments can provide a thorough assessment and talk you through the next steps.

Serious Signs of Structural Movement You Cannot Ignore

If the early warning signs are quiet whispers from your home, the advanced signs of subsidence are a full-throated shout for help. These are the serious symptoms of structural movement that you simply can't afford to ignore. When a house shifts from subtle creaks to unmistakable distress, the evidence becomes alarming and demands immediate, professional attention.

For homeowners in Poole and across the South Coast, recognising these advanced signs is crucial. This isn’t about causing panic; it's about arming you with the clear-eyed knowledge needed to protect your property. If you spot any of the following, the time for watching and waiting is over—it's time to act.

Major Cracks Demanding Immediate Attention

The most dramatic and worrying sign of serious subsidence is the appearance of major cracks. Forget the hairline fractures you might see in fresh plaster; these are a different beast entirely. They're physical proof that your home's structural integrity is under serious threat.

Keep an eye out for cracks that are:

• Wider than 5mm: To put that in perspective, it's much thicker than a 10p coin. A gap this wide shows substantial movement has already happened.

• Visibly wider at the top than the bottom: This classic diagonal ‘V’ shape is a textbook symptom of subsidence, indicating that a section of the foundation is dropping and pulling the wall apart as it sinks.

• Running right through the bricks: Unlike fractures that neatly follow the mortar lines, these cracks will often split the bricks or blocks themselves. This shows the immense stress the structure is under.

• Appearing both inside and out: When a crack mirrors itself on both sides of a wall, it’s a red flag for a deep, through-and-through structural problem.

If you find cracks like these, especially if they appear suddenly or seem to be getting bigger, it's a clear signal to call for an emergency assessment.

When Floors Begin to Slope

Have you ever walked across a room and felt a distinct, unnerving tilt under your feet? That feeling of being slightly off-balance is another serious sign of subsidence. It occurs when one part of your foundation sinks lower than the rest, causing the entire floor structure to slope.

It might start subtly—a chair that seems to roll on its own, or a marble placed on the floor gathering speed towards one wall. In more advanced stages, the slope can become obvious to the naked eye. This isn't just a quirk; it's a sign of significant, uneven ground movement that is actively distorting the very shape of your home from the ground up.

A sloping floor is a direct physical manifestation of foundation failure. It’s your home’s geometry being forcibly altered by the ground beneath it, and it requires an immediate professional evaluation to understand the extent of the movement.

Gaps Appearing Between Walls, Floors and Ceilings

As subsidence drags your foundations downward, it creates incredible tension throughout the building's frame. This force can physically pull different elements of your house apart, opening up noticeable gaps where everything was once flush and tight.

Be on the lookout for:

• Gaps between the skirting board and the floor: As the floor sinks, a gap can open up beneath the skirting boards, which remain fixed to the wall.

• Separation where walls meet the ceiling: You might notice cracking or a clear gap forming along the join where a wall meets the ceiling above.

• Extensions pulling away from the main house: A visible gap or a deep, jagged crack at the join is a major warning sign that the two structures are moving independently because of unstable ground.

These gaps are physical proof that the building's frame is being stretched to its limits. Urgent action is needed to stabilise the property and prevent the damage from getting worse. The complexity of these issues often intertwines with other parts of the building, such as the roof. For more insights on emergency property care, you might find value in our guide to emergency roof repair services in Bournemouth and Southampton. If you’ve spotted any of these serious signs of subsidence in houses, please stop and contact our in-house services at Hallmoore Developments immediately. Our experts can provide an emergency assessment to see to your property and recommend the necessary steps to secure your home.

How Professionals Diagnose Subsidence in Your Property

If you've spotted some worrying signs of subsidence in houses, making the call to a professional can feel daunting. But it's genuinely the only surefire way to get a clear diagnosis. A structural surveyor or engineer won't just take a guess; they follow a methodical process to get to the root of the problem, ensuring any fix they propose is the right one.

Understanding their process takes the mystery out of it. Think of it as a data-driven investigation designed to tell the difference between minor, harmless settlement and genuine, active subsidence. Our in-house services handle this with precision, giving you a crystal-clear picture of your property's health.

The Initial Visual Inspection

First things first, a professional will conduct a thorough visual assessment of your property. They'll meticulously examine your home in Highcliffe or Bournemouth, hunting for all the classic signs we've talked about. They’ll measure the width and depth of any cracks, check if doors and windows are sticking, and look for clues from previous repairs that might hint at a long-running issue.

This initial walk-through gives them crucial context. The surveyor will make a note of large trees nearby, check the state of your drains, and look at the local lay of the land. All this helps them form a working theory about what’s causing the ground to move before they dig into the more technical diagnostics.

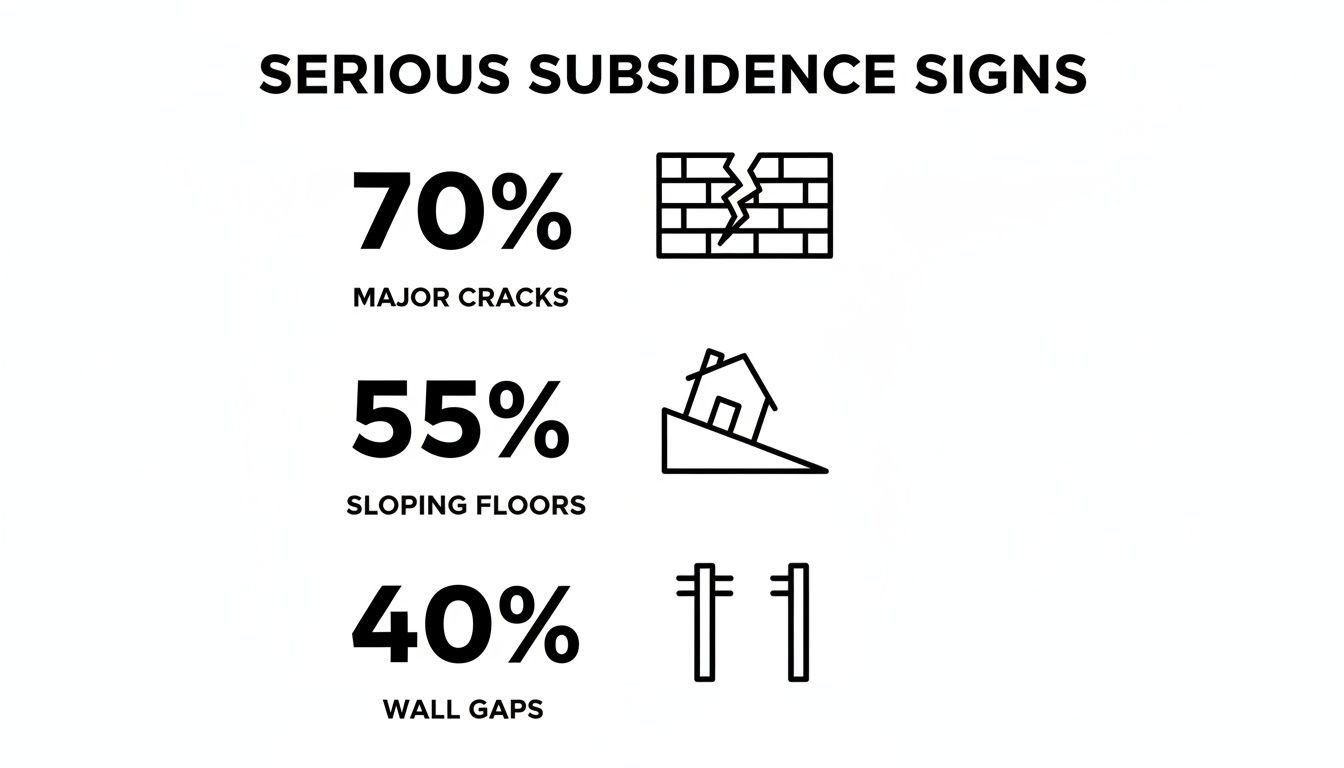

This infographic shows some of the key indicators a professional will zone in on when assessing potential subsidence.

As you can see, major cracks and sloping floors are significant red flags that any surveyor worth their salt will investigate straight away.

Monitoring Movement Over Time

Subsidence isn't a one-off event; it's a process. To confirm if the ground is still on the move, professionals will set up a period of monitoring. This is the most definitive way to diagnose an active subsidence problem.

The go-to method is installing crack monitors—often called 'tell-tales'—across any significant cracks. These are simple but clever devices made of two overlapping plates that can precisely measure any further movement, whether the crack is getting wider, closing up, or shifting vertically. This monitoring period usually lasts for several months to capture any seasonal shifts in the ground.

A single crack is a snapshot in time, but monitoring it tells the whole story. This careful, data-led approach prevents misdiagnosis and ensures that any repairs address an active problem, not a historical one.

This period of observation is absolutely vital. In the UK, subsidence claims often rocket during hot, dry summers. The 2018 heatwave, for example, led to around 23,000 insurance claims—way above the usual annual average. This was largely down to the shrink-swell clay soils common in the South East. Homeowners across Hampshire and Dorset are particularly vulnerable during these spells, as the ground contracts and pulls at foundations unevenly.

Advanced Site Investigations

If the monitoring confirms that movement is ongoing, or if the cause still isn't obvious, the investigation might need to go deeper—literally.

• Trial Pits: A surveyor might recommend digging one or more trial pits right next to your home's foundations. This lets them get their eyes directly on the foundations to see how deep they are and what type they are, and to analyse the soil sitting underneath them.

• Soil Analysis: They can take samples from the trial pit and send them off to a lab. This will determine the soil's characteristics, like its clay content and how much moisture it’s holding.

• Drainage Surveys: A CCTV drainage survey can be carried out to check for any leaky or collapsed underground pipes that might be washing away soil or flooding the ground.

These advanced steps provide the final pieces of the puzzle. Getting the diagnosis spot-on is fundamental to any effective repair, much like correctly identifying structural elements is for renovations. For more on that, take a look at our guide on how to identify load-bearing walls in your Bournemouth home. Once the cause is confirmed, our in-house services at Hallmoore Developments can put together a targeted and effective plan to put things right.

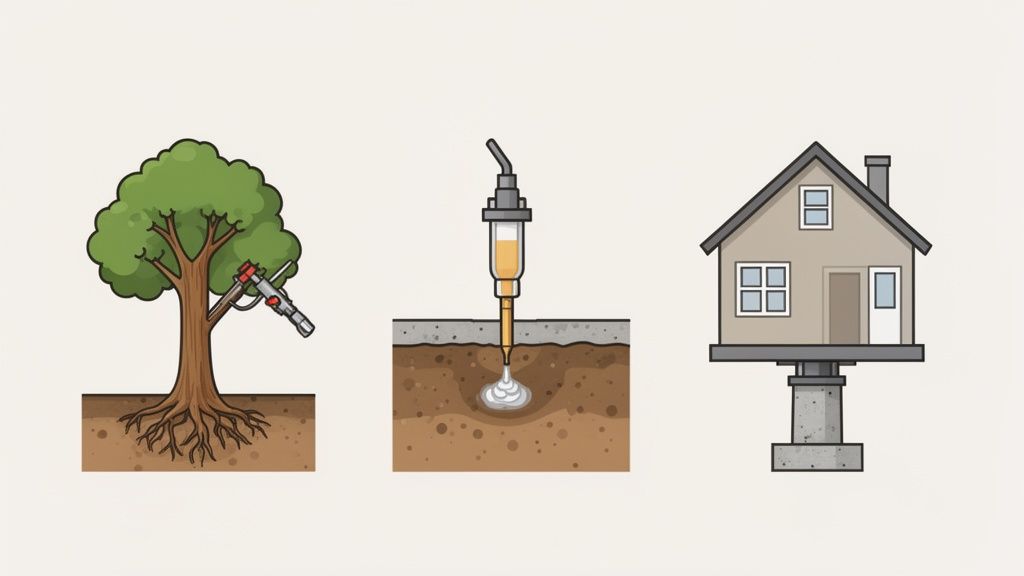

Common Subsidence Repair Methods Explained

Once a professional has figured out what’s causing your subsidence, the next step is sorting out the fix. Thankfully, it doesn’t always mean your home is about to become a major building site. The right approach depends entirely on the root cause, and our in-house services at Hallmoore Developments will always recommend the most targeted and effective solution for your property.

Often, the fix is simpler than you might think. Many cases of subsidence are linked to things happening outside your home that, once sorted, can stabilise the ground and stop any further movement. This is all about tackling the source of the problem, not just patching up the cracks it leaves behind.

Less Invasive Solutions and Management

Before we even think about major structural work, we need to rule out and fix any environmental causes. This is always the first line of defence and, in many situations, it’s all that’s needed to solve the problem for good.

Here are some of the most common non-invasive repairs we handle for properties in Christchurch and Poole:

• Drainage Repairs: A leaking or broken drain can slowly wash away fine soil particles from under your foundations or turn clay soils into a soggy mess. Our expert plumbers can run a CCTV survey to pinpoint the leak and carry out the necessary repairs, stopping the problem right where it starts.

• Tree Management: If a thirsty tree is the culprit, its influence needs to be managed. This doesn’t always mean chopping it down; a qualified tree surgeon might suggest pruning the crown to reduce how much water it drinks or installing a root barrier to block it from getting any closer to your foundations.

• Water Management: Sometimes, simply improving surface drainage to make sure water flows away from your home can be a game-changer. A few smart landscaping adjustments can make a huge difference.

Major Structural Subsidence Repairs

In more serious cases, or when the ground movement has been significant, we need to get more hands-on to re-stabilise your home's foundations. These methods are designed to either strengthen the ground or the foundation itself, providing a permanent fix to the movement.

One of the most modern and least disruptive methods is resin injection. This involves injecting a special geopolymer resin into the ground beneath your foundations. As the resin expands and hardens, it fills any gaps, compacts the loose soil, and beefs up the ground’s ability to support your home. It’s a fast, clean process that can often be wrapped up in a day or two.

The more traditional, and probably more well-known, method is underpinning. This is a much bigger job that involves manually extending the existing foundations down to a deeper, more stable layer of soil by excavating around your property.

It's important to understand that underpinning is now seen as a last resort for the most severe cases of subsidence. Modern techniques like resin injection are often preferred for their speed, minimal disruption, and effectiveness.

The financial fallout from subsidence can be staggering. UK subsidence-related insurance claims recently rocketed to £153 million in just six months, affecting nearly 9,000 households with an average payout of £17,264 each. This sharp rise, fuelled by record warm weather drying out clay soils, shows exactly why homeowners in Hampshire and Dorset must watch for the early signs of subsidence in houses, particularly when planning renovations.

If a professional diagnoses your property as needing significant structural work, understanding what’s involved in solutions like underpinning a basement can be really helpful. For a detailed breakdown of the process here in the UK, check out our guide on what underpinning involves. At Hallmoore Developments, our in-house experts can handle every aspect of the repair, from the initial structural work to the final plastering and decorating, ensuring your home in Ringwood or Southampton is fully restored.

So, You've Spotted a Problem? Here’s What to Do Next (and How We Can Help)

Seeing a crack widen or a floor begin to slope can be unsettling, but the most important thing is not to panic. Taking decisive, informed action is what truly protects your home. Getting it right at this stage can mean the difference between a manageable repair and a major structural headache down the line.

This is where you need a steady, expert hand to guide you. At Hallmoore Developments, we’ve built our reputation across Highcliffe, Bournemouth, and Southampton by offering a complete, start-to-finish service for subsidence issues. We take the weight off your shoulders so you can focus on getting your home back to normal.

Our All-in-One Subsidence Service

For homeowners in Christchurch and Poole, the last thing you need is the stress of coordinating multiple contractors. We provide a single, reliable point of contact. Our in-house services see to every single aspect.

• 24/7 Emergency Call-Outs: Some problems just can’t wait. If you’re facing an urgent issue, our team is on standby to secure your property and provide immediate assistance.

• Structural Assessments: We get to the root of the problem. Our thorough investigations pinpoint the exact cause of the movement, ensuring any repair plan is built on an accurate diagnosis.

• Complete Repair Management: We see the job through from beginning to end. From advanced resin injections and foundation underpinning to the final lick of paint, we manage the entire restoration process.

Your Local Partner in Restoring Your Home

With Hallmoore Developments, you’re not just hiring a contractor; you’re gaining a dedicated partner committed to restoring your home’s stability and value. We believe in total transparency, which means clear communication and honest pricing from day one. You’ll always know exactly what’s happening.

The risks from subsidence aren’t going away. In fact, with climate change affecting soil conditions across the UK, problems like clay shrinkage are predicted to cause a significant rise in insurance claims over the next few decades. Being proactive has never been more critical. You can learn more about these trends and the future of subsidence risk.

If you’re worried about your property in Ringwood, or anywhere across Dorset and Hampshire, don't wait for the problem to get worse. Contact our team today. Let our in-house experts take a look and see to your home, giving it the professional care it deserves.

Got Questions About Subsidence? We’ve Got Answers.

When you suspect subsidence, a million questions can race through your mind. To put you at ease, we’ve put together answers to some of the most common queries we hear from our clients across Highcliffe, Bournemouth, and Southampton. Think of this as your straightforward guide to understanding the essentials.

How Can I Tell Subsidence Cracks from Normal Settlement Cracks?

This is the big one, and getting it right is crucial. Almost all new builds will have some minor settlement cracks. These are usually hairline-thin, vertical, and appear in the first few years as the house settles into its foundations. They’re nothing to worry about.

Subsidence cracks, on the other hand, tell a different story. Here’s what to look for:

• They often run diagonally, typically spreading out from the corners of windows and doors.

• They tend to be wider at the top than the bottom, almost like a thin slice of pizza.

• The crack is usually thicker than 3mm – wide enough to slip the edge of a 10p coin into.

• You’ll often find them in the same spot on both the inside and outside walls of your property in Ringwood.

If the cracks you’re seeing tick these boxes, it’s a strong sign the ground beneath your home is shifting, not just settling.

Can My Property Be Insured if It Has a History of Subsidence?

Yes, but you’ll need to be upfront about it. You are legally required to declare any history of subsidence when you apply for home insurance – not doing so could void your policy right when you need it. Some insurers might turn you down, while others will offer cover with a higher premium or a larger excess specifically for subsidence claims.

The good news? If the property has been professionally repaired and you have the paperwork to prove it’s stable, getting insurance is much easier. Our in-house services at Hallmoore Developments provide all the necessary documentation and certificates after we complete a repair, helping you secure the right cover for your Poole home without the headache.

Will Subsidence Make My House Unsellable?

Not at all, but it does add a hurdle to the selling process. A history of subsidence can spook potential buyers if the problem hasn’t been properly fixed. The game-changer is a property with a documented history of successful repairs, backed by a certificate of structural adequacy.

The key is transparency and professional resolution. Proving that the root cause was identified and fixed by a reputable company gives buyers and mortgage lenders the confidence they need.

Our expert team provides a full report and all the paperwork for the repair work, giving everyone involved in the sale the reassurance they need to proceed.

How Long Do Subsidence Repairs Take?

This really depends on what’s causing the problem and the solution we choose. Minor fixes, like repairing a leaky drain that’s washing away soil, can be sorted out quickly. Modern solutions like resin injection are surprisingly fast and can often be completed in just a few days with very little disruption.

Traditional underpinning, however, is a much bigger job and can take several weeks from start to finish.

---

If you've spotted any worrying signs of subsidence in houses in Christchurch or the surrounding areas, don’t put it off. Contact Hallmoore Developments today. Our in-house services are ready to carry out a thorough assessment, see to every aspect of the repair, and restore both your peace of mind and the safety of your home. Get in touch with our experts now.
